描述
Hot dip galvanized steel sheet details
| Name | Hot Dip Galvanized Steel Sheet | GL steel coil/Anti-Finger |
| Standard | GB/T-2518
JIS G 3302 EN 10142/10427 ASTM A 653 |
GB/T-14798
JIS G 3321 EN 10215 ASTM 792 |
| Grade | SGCC
DX51D+Z |
SGLCC
DX51D+AZ |
| Thickness | 0.12-2.0 mm (±0.02 mm) | 0.16-0.7 mm (±0.02 mm) |
| Width | 30-1250 mm(±2 mm) | |
| Length | Coil or as Customer’s requirement | |
| Zinc/Aluzinc coating | Zn 40 g/sm-275 g/sm | Alu-zinc 40-150 g/sm |
| Spangle | Zero/Mini/Regular/Big | Regular |
| Coil weight | 3-5 tons or As your requirement | |
| Hardness | CQ/FHA/As your requirement (G 300-G 550) | |
| Surface Treatment | Anti-Finger printing, Chromated, oiled/ non-oiled, etc. | |
| Certification | ISO 9000, BV, SGS, etc. | |
| Application | Structural use, roofing, corrugated roofing, commercial use, household appliance, industry, etc. | |

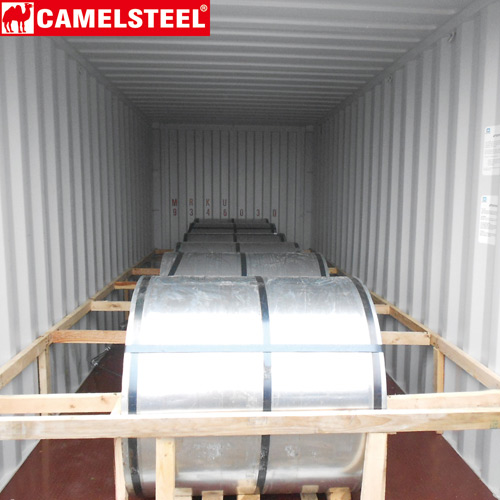

Hot Dip Galvanized Steel Sheet Packaging & Shipping
- 1. Each bare coil to be securely tied with two bands through the eye of coil (or not) and one circumferential.
- 2. The contact points of these bands on the coil edge to be protect with edge protectors.
- 3. Coil then to be properly wrapped with water proof /resistant paper, it then to be properly and completely metal wrapped.
- 4. Wooden and iron pallet can be used or as your requirements.
FAQ
- What is recommendation?
Asia: Thickness 0.18 / 0.19 / 0.21 / 0.24 / 0.26 mm, width 914/1000/1250 mm, high gloss red, high gloss brown, clear varnish.
Africa: Thickness 0.25 / 0.26 / 0.27 / 0.28 / 0.3 / 0.38 / 0.4 / 0.45 mm, with 762/914/1000 /1250 mm width, red, green, blue, white.
South America: Thickness 0.12 / 0.14 / 0.16 / 0.35 / 0.49 mm, width 914/1000 / 1220 mm, red, green and blue color.
2. What s the payment term?
30-50% T/T in advance (based on your qty ), 70% balance against copy B/L in 7 workdays.
3. When will you arrange production?
In 7 workdays when we receive your advance payment.
4. When will you send BL copy?
In 3-5 workdays after shipment date.
